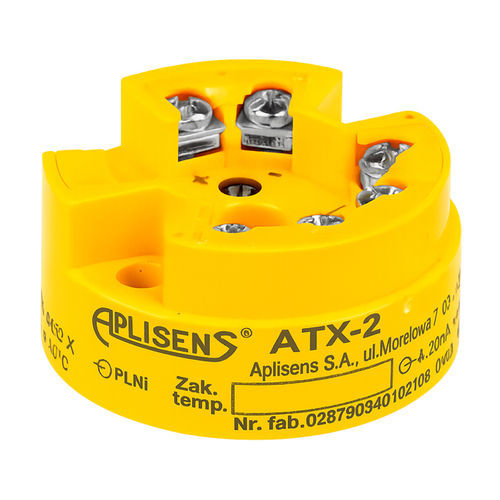

Probe head-mounted temperature transmitter ATX-2Pt100Pt1000Pt500
Add to favorites
Compare this product
Characteristics
- Mounting
- probe head-mounted
- Input type
- Pt100, Pt1000, Pt500
- Output signal
- analog, 4-20 mA
- Other characteristics
- programmable, ATEX
- Applications
- process
- Temperature range
Min.: -200 °C
(-328 °F)Max.: 850 °C
(1,562 °F)- Accuracy (temperature)
0.2 °C, 0.4 °C
(32.36 °F, 32.72 °F)
Description
The ATX-2 Model is a programmable temperature transmitter developed by Aplisens. Its programmable sensor type is Pt100 and Ni100. This product is equipped with a relay output of 4..20mA, programmable measuring range, and a thermosistence line compensation with 3 wires line. Additionally, it is also supplied with ATEX certificate and head-mounting system.
Programmable measuring range.
Thermoresistance line compensation
ATEX certificate II 1G Exia II CT6
Head- mounting system.
