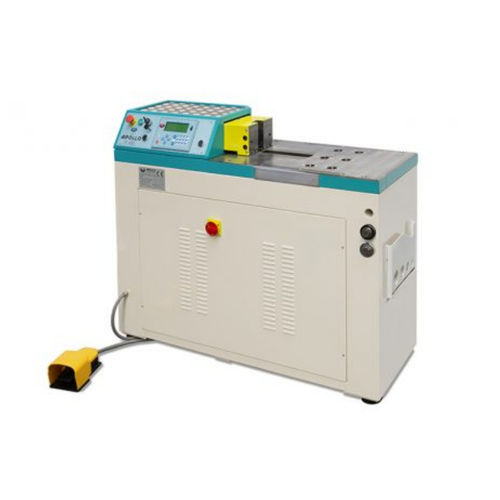

Electric press EP32
bendingstraighteningpunching

electric press
electric press
electric press
electric press
electric press
electric press
electric press
electric press
Add to favorites
Compare this product


Characteristics

Operation
electric
Function
bending, straightening, punching
Other characteristics
horizontal
Applications
process
Force

32 tf

Stroke

250 mm
(10 in)

Table width

500 mm
(20 in)

Table length

760 mm
(30 in)

Working speed

10 mm/s

Hydraulic pump power

3 kW

Overall length

500 mm
(20 in)

Overall width

1,340 mm
(53 in)

Overall height

1,150 mm
(45 in)

Description

The Apollo’s horizonal presses are realized since over 30 years and the models are of 32-40-50-62 tons. Thanks to the multiple tools, is possible with the same machine: bend, punch, shear, straighten. Particularly appreciate for process copper busbars. HEIGHT WORKING TABLE: 930mm IN OPTIONAL RISCONTRO MOTORIZZATO: MOD. “SPEEDY” FROM 1 TO 6 mt MAXIMUM BENDING: 200X18 mm MAXIMUM SHEARING: 150×15 mm MAXIMUM STRAIGHTENING: H=200 mm
