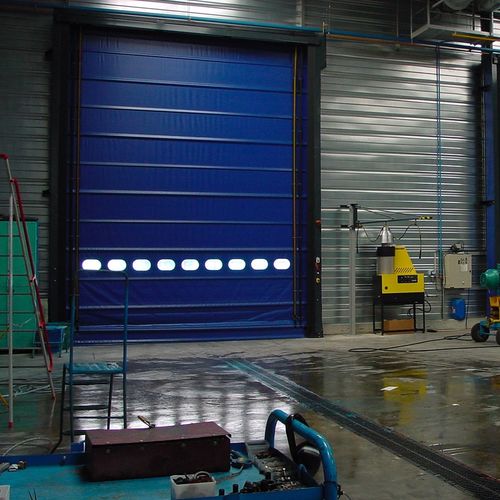

Fold-up door F30

stainless steelgalvanized steelPVC

Rapid fold-up door with antidamage system suitable for industrial buildings. Specifications Installation: Application: inside/inside, inside/outside Pillars and crossbeam: Pillars and crossbeam in press-bending plate in galvanised steel, RAL or stainless steel on demand Curtain: self-extinguishing PVC class II, anti UV and anti mould, stiffened by tubes. Anti-raising: system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1. Manual-repair: the flexible rails avoid tubes damages allowing a manual curtain reinsertion in case of coming out. Anti-damage: the flexible rails avoid permanent damages to the structure. Windows: windows or visibility stripes Opening systems Metal detector: automatic opening command with magnetic loops metal mass sensor Radar: opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need. Remote control: transmitter-operating range from 80 to 100 meters. Security systems The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1. NO TOUCH SECURITY SYSTEM Motor control Nominal installation tension 400V / 3+T Frequency 50 Hz Motor power from 1,5 to 2,2 kW Single speed gear motor
