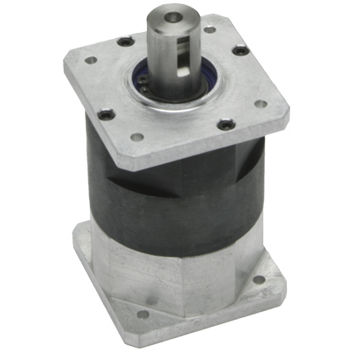

Planetary gearhead 17VL seriescoaxialsolid-shaft10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 10 - 20 Nm
- Other characteristics
- compact, NEMA 17
- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)
Description
• True Planetary Design
• Compact Design
• Sealed Ball Bearings
• Heat Treated Gears
• High Efficiency Design
• AGMA Gear Quality
The 17VL004 planetary gearhead offers true planetary performance in a value priced package. High strength, heated treated gears provide for efficient transmission of torque and accurate speed matching.
Part Number: 17VL004
Frame Size: NEMA 17
Ratio: 4:1
Torque, Nominal: 109 in-lb
Torque, Max Accel: 137 in-lb
Torque, E-Stop: 221 in-lb
Length: 2.41 inches
Weight: .8 lbs
Backlash: 12 arc-min
Low Backlash: NA
Operating Temperature: -40 to 120 °C
Service Life: > 10,000 hours
Shaft Diameter: 12.7 mm (0.500 inch)
Inertia: 2.331E-10 oz-in-sec2
