DIN rail power supply PS series
AC/DCregulatedswitching

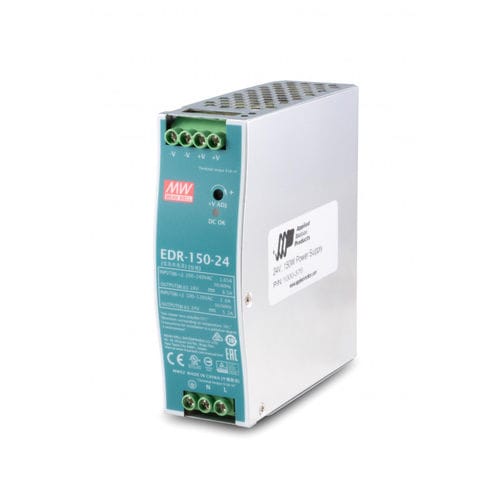

DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 2
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 3
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 4
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 5
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 6
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 7
DIN rail power supply - PS series - Applied Motion Products - AC/DC / regulated / switching - image - 8
Add to favorites
Compare this product

Characteristics

Mounting / format
DIN rail
Type
AC/DC
Output
regulated
Technology
switching
Input voltage

Min.: 90 V

Max.: 268 V

Output voltage

Min.: 24 V

Max.: 80 V

Current

5 A, 5.2 A, 6.3 A, 6.7 A, 10 A

Power

125 W, 150 W, 240 W, 480 W

Description

• DIN rail mounted • Fanless enclosure • For use with DC-powered stepper drives and integrated motors The PS150D24 switching power supply is a DIN rail mounted power supply in a fanless enclosure. It is an excellent choice for use with Applied Motion stepper drives and integrated motors when a 24VDC bus voltage is required. Compatible Drives and Integrated Motors All drives and integrated motors where the upper value of the supply voltage range is 24 volts DC or higher are compatible with this power supply, including the following: • StepSERVO™ Integrated Motors (e.g. TSM23P-3AG, TXM24Q-1EG) • StepSERVO™ Drives (e.g. SS03-EC-D) • Integrated Steppers (e.g. STM23Q-2AE, SWM24IP-3EE) • Stepper Drives (e.g. STR4, ST5-S) Model Number: PS150D24 Part Number: 1000-376 Maximum Ambient Temperature: 70 ºC (with derating, see datasheet) Weight: 1.3 lbs
