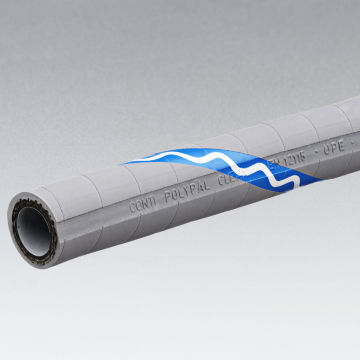

Chemical product hose 06.5327.60 series
foodstuffpolyesterEPDM

Add to favorites

Compare this product

Go to the APSOparts® website for more information

Characteristics

Use

for chemical products, foodstuff

Material

polyester, EPDM

Other characteristics

vacuum, smooth, wear-resistant

Inner diameter

25 mm, 31 mm, 38 mm, 50 mm, 75 mm
(0.984 in, 1.22 in, 1.496 in, 1.969 in, 2.953 in)

Outer diameter

37 mm, 44 mm, 51 mm, 66 mm, 91 mm
(1.457 in, 1.732 in, 2.008 in, 2.598 in, 3.583 in)

Pressure

16 bar, 50 bar
(232.06 psi, 725.189 psi)

Temperature

Min.: -35 °C
(-31 °F)

Max.: 100 °C
(212 °F)

Description

Material inner layer:UPE Material outer layer:EPDM Material pressure support:textile fabric Material spiral:steel, galvanized Working temperature:from -30 to +100 °C Short-term working temperature:+130 °C Operating pressure:16 bar Bursting pressure:50 bar Vacuum stability:100 mbar Max. electric resistance outer layer (R):10^6 Ohm Max. electric resistance inner layer (R):10^6 Ohm Max. elec. resistance through the hose wall(Ohm/T):10^9 Ohm Surface inner layer:with spiralized electr. conductive strips of smooth, black, non-discoloring and wear-resistant PE Colour inner layer:transparent clear Colour outer layer:light gray Conformity:FDA; USP Cl. VI; EC 1935/2004 Norm:EN 12115; TRbF 131/2 Marking:compliant to EN 12115 + Name, blue/white/blue helix Ohm/T Product description:suitable for most industrial acids, alkaline solutions and solvents Application:for use in contact with food, pharmaceuticals and cosmetics Version:spiralized
