Liquid disinfectant dosing dispenser

for chlorinefor chemicalswater

Overview The Apura dosing unit is designed to dose biocides and chemical products into potable water, such as hypochlorite and chlorine dioxide. Volumetric dosing is provided by an integrated water meter and the dosing quantity can be programmed according to the application (disinfection or maintenance).

Construction and installation The control panel is manufactured by Apura and can be customized (stainless steel, PVC, PVDF). The panel is suitable for wall mounting or installation on a self-supporting structure and is supplied with a safety tank for the chemical product. The panel can be fitted with a personalised rear graphic and supports piping from 3/4" to 2". Accessories are available on request.

Use and maintenance The unit is intended for professional use only and requires regular maintenance. A maintenance interval of every 6 months is recommended to ensure dosing accuracy and safe operation.

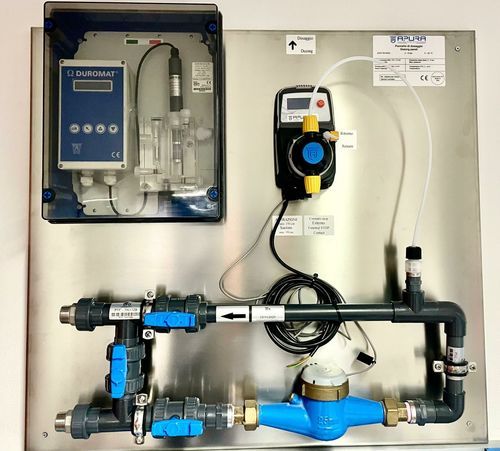

Example Example of a dosing unit equipped with the amperometric analyzer Duromat Ohm.

Technical specifications

• Power: 100÷240 VAC ± 10 % – 50/60 Hz
• Protection degree: IP65
• Dimensions: 700x800 mm
• Weight: 19.5 kg
• Consumption: 18 Watt
• Environmental temperature: 5–40 °C (41–104 °F)
• Dosing amount: max. 1.8 l/h – 20 bar
• Dosing pipe: 6 mm
• Pressure: 1–6 bar
