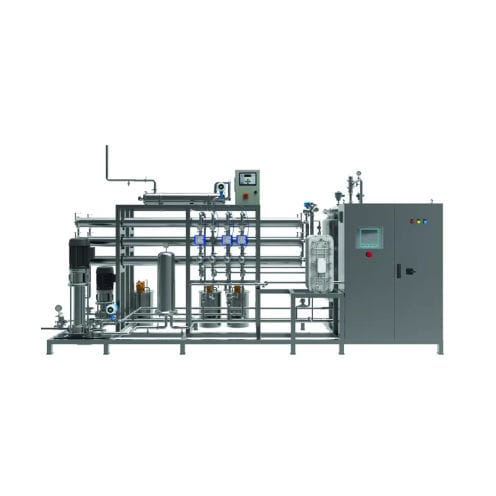

Purified Water RO Unit, double or single in combination with CEDI
The units have a number of design features to achieve an optimised function and a safe water quality exceeding the latest editions of USP and EP for Purified Water (PW) or Highly Purified Water (HPW). The units are individually dimensioned based on desired capacity & quality and a complete Raw Water Analysis.
DESIGN FEATURES
* Fully automatic function and surveillance.
* Maximal operational safety.
* High flexibility.
* Hot water sanitation and CIP system.
* Skid mounting, easy to install
PRE TREATMENT, 200 – 10 000 L/h
Multi-media filtration
Iron removal
Softeners
Dosing systems
Fine particle filtration
RO SYSTEMS, double pass, 200 – 7000 L/h
Full-fit membranes
Membrane housing of AISI 316L
Pipe system of AISI 316L or CPVC
CIP system
RO + CEDI SYSTEMS, 200 – 7000 L/h
Full-fit membranes
Membrane housing of AISI 316L
Pipe system of AISI 316L or CPVC
CEDI, thick plate type
CIP system
PLC AUTOMATED STANDARD FUNCTIONS
* Automatic start/stop on signal from PW tank.
* Manual start/stop.
* Discharge of sub-standard PW or HPW during… start.
* peration and stop.
* Automatic valve regulation of all medias
* Automatic surveillance & alarms of critical… process values.
