The units have a number of design features to achieve an optimised function and a safe distillate quality exceeding the latest editions of USP and EP for Water For Injection.
DESIGN FEATURES
* Fully automatic function and surveillance.
* Unique 4 step separation system.
* Maximal operational safety.
* High flexibility
* Pure Steam production possible
* Space saving, easy to install
SINGLE EFFECT STILLS

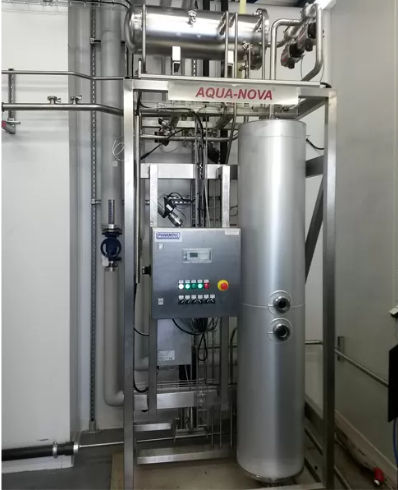

S-50/150-C, steam heated, production:
Distillate, 90ºC, 50 – 150 L/h, using 2 – 6 bar g
E-50-C, electrically heated, production:
Distillate, 90ºC, 50 L/h, 35 kW
E-8-C, electrically heated, production
Distillate, 90ºC, 8 L/h, 6 kW
Other capacities are available on request!
PLC AUTOMATED STANDARD FUNCTION
* Automatic start/stop on signal from WFI tank.
* Discharge of sub-standard distillate during start,…operation and stop.
* Automatic valve regulation of heating steam,…feed and cooling waters as well as compressed air.
* Automatic surveillance & alarms of critical process…values.
EXAMPLE OF OPTIONAL EQUIPMENT
* Automated or manual valves for Pure Steam..production.
* Pure Steam sample condenser.
* Sterile air vent filter and close off.
* Self sterilisation cycle and valves.
* Heat steam safety relief valve & pressure shut off.
* Distillate “after” cooler to desired temperature.
* Electro polished internal surfaces.
* Boroscope inspection of internal welds.
* Central control cabinet for the complete WFI system.
* WFI storage tanks and loop systems.
