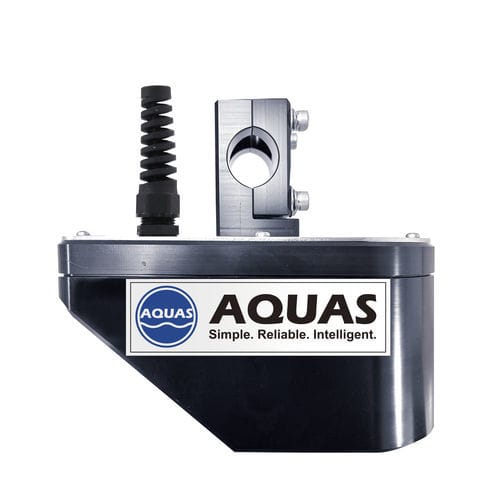

Radar flow meter SMR63

volumefor watersuspended

The Radar Flow Velocity Transmitter is connected directly via RS485 communication interface, providing simple, reliable, cost-saving process data with remote monitoring, calibration, configuration and diagnostics capabilities. Housing in a robust IP68 proof enclosure, 1500 N tensile strength Kevlar reinforced cable, up to 1.2 km digital data transmission, the transmitter is ideally used in water/wastewater industry. Features All-in-One Compact Housing, Built-in Transmitter and Sensors Robust IP68 Water Submersible Protection, Directly Installed in the Field, No Cabinet Required 80 GHz Superier Focusing Radar Beam, Beam Angle Less than 6° to Auoid Obstacles and Build up in Confined Spaces 120 dB Wide Dynamic Range to Accurately and Reliably Measure Poorly Reflective Liquides, Liquid down to Bottom level, Even with Surface Foam, Extremely Turbulent Flow, and Condensation on Antenna Advanced Intelligent Algorithm and Signal Processing Technology to Eliminate Echo Noise Surcharge Hydrostatic Level Sensor, Continue to Provide Uninterrupted Level Measurement Plug & Play, On-line Realtime Measurement Ultra Low Power Consumption, Ideal for Outdoor Applications 1500 N Tensile Strength Kevlar Reinforced Cable Surge Protection for Power and RS485 Communication RS485 Digital Communication, Minimize Cabling and Engineering Cost Standard Modbus RTU Protocol, Direct Connected with PLC, HMI Built-in tilt sensor, Auto Angle Compensation Not effected by Temperature, Rain, Snowfall, Turbidity, Suspended Solids, Vapor, Steam and Sand Storm
