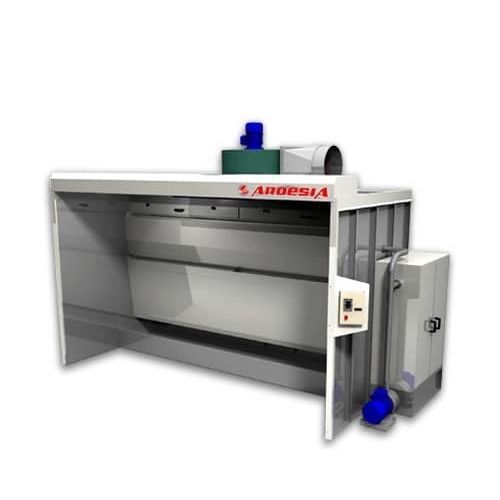

Open paint booth Plus

for partsfilterwater

The Plus water painting booth is suitable for suctioning and demolishing the pigments and fumes emitted from paint spray made with synthetic solvents, organic water. The removal of the pigments and fumes occurs with a double frontal veil of water, nebulisers, the separation of water droplets through plastic trays and air filtration with “Paint Stop” filter drawers. The cabin Plus has a water purification system composed of a stainless steel filter and sacks for draining sludge. Plus is built with modular panels of galvanized press-folded sheet-iron. The tank is constructed with stainless sheet-iron. The veils are made ofgalvanized pre-painted sheet-iron. The lower veil is openable. Description Standard equipment Plus Antispark centrifugal electrical fan Stainless steel water tub Double frontal zinc plated veil Inferior veil openable with gas springs Nebulisers Drop separator “Filler” in PVC Metallic drawer with “Paint Stop” filter Wired electrical panel IP55 Wired ceiling light IP66 Exterior electrical pump Stainless steel water filter Water filtration system with drainage sludg sack Emergency button Timer Change section Predisposition for pressurization
