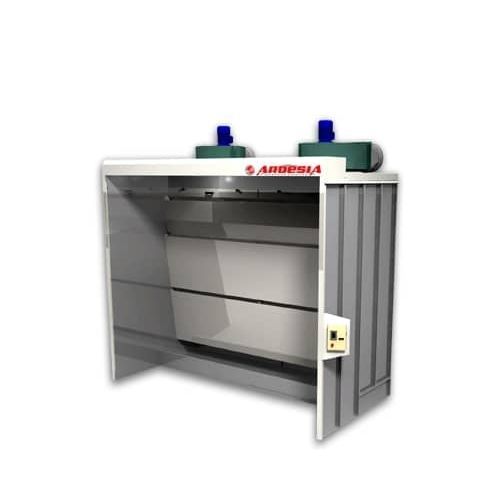

Open paint booth Triple

for partswater

The Triple water painting booth is suitable for suctioning and demolishing the pigments and fumes emitted from paint spray made with synthetic solvents, organic water. The removal of the pigments and fumes occurs with a triple frontal veil of water, nebulisers, the separation of water droplets through plastic trays and air filtration with “Paint Stop” filter drawers. The cabin Triple is built with modular panels of galvanized press-folded sheet-iron. Triple is utilized for painting elements that are over-sized. The veils are made of galvanized pre-painted sheet iron. The lower and central veils are openable. Description Standard equipment Triple Antispark centrifugal electrical fan Triple frontal zinc plated veil Central and inferior veils openable Nebulisers Drop separator “Filler” in PVC Metallic drawer with “Paint Stop” filter Wired electrical panel IP55 Wired ceiling light IP66 Wired immersion stainless steel pump Water filter Emergency button Timer Change section Predisposition for pressurization
