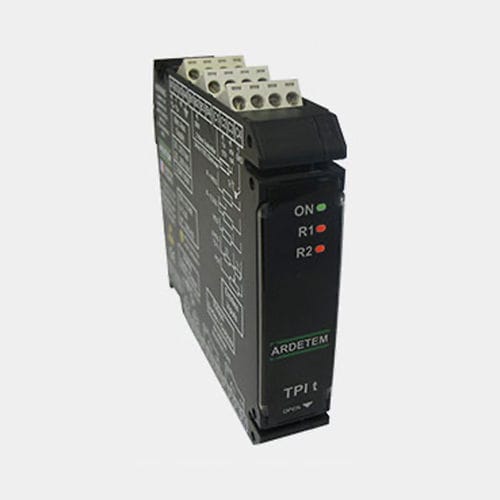

Analog signal converter TPItL 10universalDIN rail
Add to favorites
Compare this product
Characteristics
- Signal type
- analog, universal
- Other characteristics
- DIN rail
Description
The TPIt L 10 is a programmable safety signal converter, designed according to the standard EN61508 to fulfil the requirements of safety integrity level SIL 2.
Easy programmable with SuperVision PC software or on the front face with a micro-console
TECHNICAL SPECIFICATIONS
SIL2 SAFETY PROGRAMMABLE CONVERTER, UNIVERSAL INPUT AND POWER SUPPLY
SIL2 safety integrity level according to the standard EN61508
Universal input: mA,mV,V,TC,PT100,resistance,…
Accuracy: 0.1%
Typical response time: 500 ms
Scale factor programmable
Supply for 2-wire sensor
Isolated analog output (voltage or current)
Universal power supply: 20 to 270 vac and 20 to 300 vdc
For DIN rail mounting
Programmable by software or µconsole (optional)
