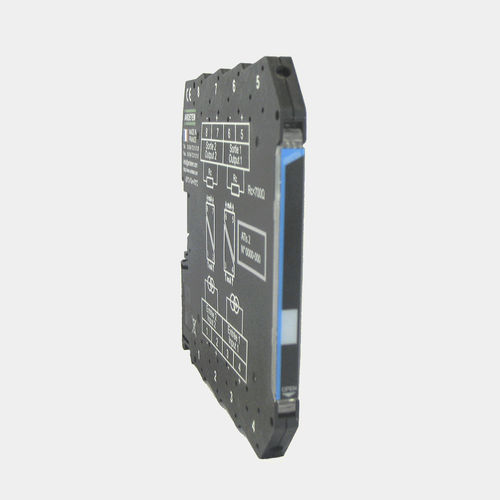

Signal isolator ATIs 2
2-channelATEX

signal isolator
signal isolator
signal isolator
Add to favorites
Compare this product


Characteristics

Type
signal
Other characteristics
2-channel, ATEX

Description

The ATIs 2 extra slim 7.2mm Loop Isolator solves common key problems that may occur on the measure loops and reduces the rejection of the disturbances induced on the cables. This equipment is developed to be installed in ATEX/IECEx area 2. TECHNICAL SPECIFICATIONS 2-CHANNEL SELF-POWERED LOOP ISOLATOR IN EXTRA SLIM HOUSING 7.2 mm Without power supply Accuracy: +/- 0.1 % Response time < 2 ms Low line drop < 1,5 V Isolation between input/output: 2 kV 50Hz 1 mn Dimensions: 7.2 x 114 x 114 mm For DIN rail mounting

Catalogs

ATIS H
ATIS H
2 Pages
