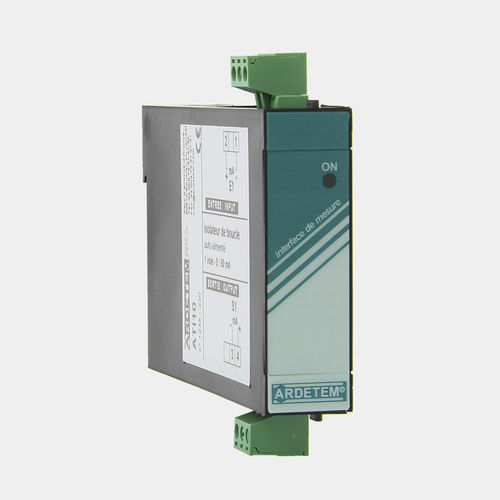

Signal isolator ATI 10 | ELIT 10

2-channelPLC

The ATI 10 solves common key problems that may occur on the measure loops and reduces the rejection of the disturbances induced on the cables. Applications: isolation of current loops, isolation of measure transmitters from the PLC boards, isolation of 4-20mA signals from thermocouples, which may have isolation problems when temperature increases… TECHNICAL SPECIFICATIONS 1-CHANNEL SELF-POWERED LOOP ISOLATOR Without power supply Class 0.15 Response time: 1 ms Low line drop < 1.8 V Removable terminal blocks Dimensions: 75 x 22.5 x 120 mm For DIN rail mounting
