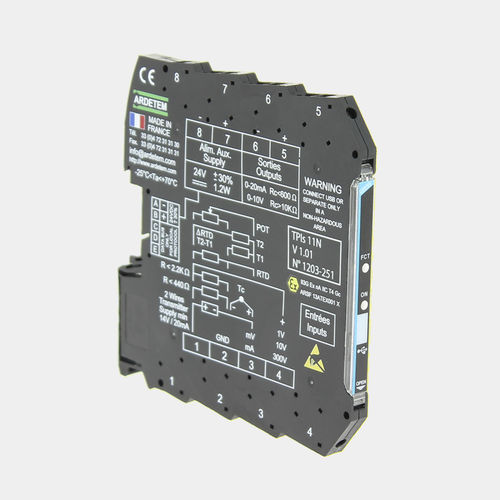

Analog signal converter TPIs 70

DIN rail

The TPIs extra slim series is specially designed for the measurement of industrial signals (process, temperature, resistance, frequency…) which can either operate independently and autonomously or be interconnected in a local network. Easy programmable by µUSB plug on the front face or quick configuration by µSwitches for the version S. TECHNICAL SPECIFICATIONS Input: TRMS AC voltage Accuracy: 0.2% Scale factor programmable Isolated analog output: voltage or current Isolation between input/output/supply: 2 kV 50 Hz 1 mn Power supply: 24 VDC +/- 30% For DIN rail mounting Programmable by software SLIMSET
