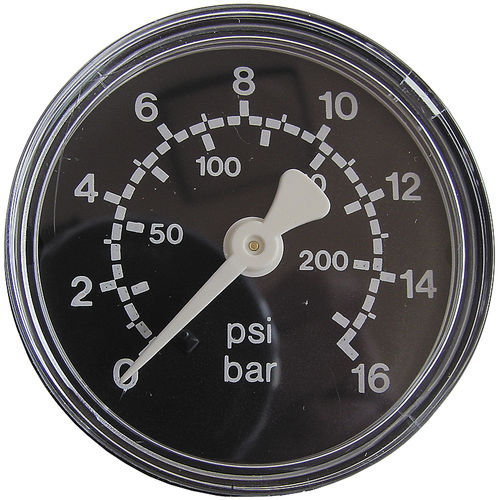

dial pressure gauge / Bourdon tube / process / stainless steel

Add to MyDirectIndustry favorites
Compare this product
dial pressure gauge / Bourdon tube / process / stainless steel dial pressure gauge / Bourdon tube / process / stainless steel
{{requestButtons}}

Characteristics

  • Display:

    dial

  • Technology:

    Bourdon tube

  • Applications:

    process

  • Other characteristics:

    stainless steel, precision

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 40 bar (580.15 psi)

Description

• Reed pen pressure gauges with vertical and horizontal connection.
• Diameter 40, 50 and 63 mm.
• Display ranges 0 to 10, 16, 25 bar.
• The display range should be used between 2/3 to 3/4, i.e. a pressure regulator with a display range 0,5 to 10 bar is equipped with a pressure gauge with display range 0 to 16 bar precision class 2,5 ( 1,6 )
• Housing plastic (ABS)


Bourdon tube pressure gauge for industrial applications
For machine and plant engineering. Robust, stainless steel housing with bayonet bezel. For gaseous and liquid media which are not highly viscous, does not crystallise and not attack copper alloys. For high accuracy and rough application conditions. Degree of protection – IP 54 (EN 60529).
