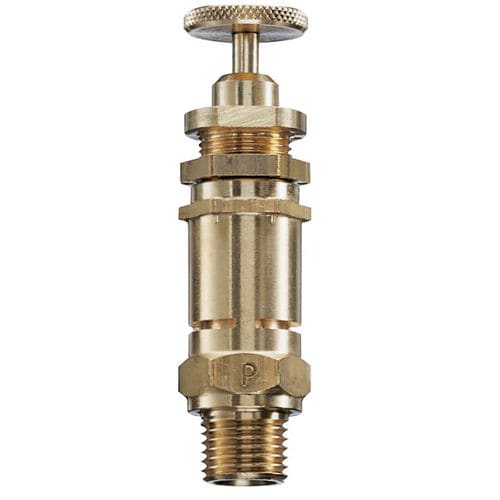

Pressure-control valve
pneumaticpurgefor compressed air

pressure-control valve
pressure-control valve
pressure-control valve
pressure-control valve
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Function
pressure-control, purge
Media
for compressed air
Pressure

10.8 bar, 12 bar, 13.2 bar (156.6 psi)

Description

To blow out non-poisonous and non-flammable gases into the atmosphere in order to protect pressure tanks against overpressure.Setting and lead seal at additional charge. Definitions Set pressure = start-to-leak pressureBeginning of audible leaking Opening pressureValve completely open, maximum blow-off / deflation Closing pressureValve is closed and sealed (tight) Opening pressure differenceDifference between start-to-leak pressure and opening pressure Closing pressure differenceDifference between start-to-leak pressure and closing pressure
