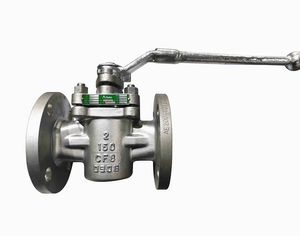

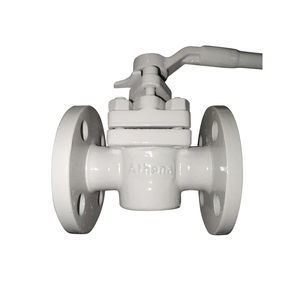

Plug valves

DN: 15 mm - 150 mm
Pressure: 10, 16 bar

... Durco T4E valves provide maximum corrosion resistance while eliminating product contamination at a reasonable cost. They are available with pneumatic or electric actuators for on-off or modulating control applications. Cost-effective ...

Pressure: 0.1 MPa - 0.7 MPa
Temperature: -5 °C - 60 °C

... Your three-in-one solution • Make temporary intermediate stops – With integrated pilot check valve • Construct a safety circuit – With residual pressure release function as an option • Fit it anywhere – As small as 26.8 mm high for ...

DN: 25 mm - 100 mm
Pressure: 150 mbar - 1,000 mbar
Temperature: -40 °F - 104 °F

... Control valves for controlling continuously regulated burner processes, linear ratio between input signal and flow rate, control ratio 100:1, for gas and air, EC type tested and certified. Control valves with integrated ...

DN: 3 in - 8 in
Temperature: 593 °C

... Fisher EH series valves are specially designed for high-pressure applications. These valve configurations incorporate proven techniques in flow-stream contouring for higher capacities and in valve trim ...

DN: 100, 150 mm
Pressure: 16 bar

... sizes Speeds operation of the dry pipe valve upon loss of air pressure For Use With DPV-1 Valves The Tyco® Model ACC-1 dry pipe accelerator attaches to the Tyco® Model DPV-1 dry pipe valve to allow ...

DN: 3.2, 4, 6 mm
Pressure: -100,000 Pa - 1,000,000 Pa
Temperature: -5 °C - 60 °C

... 2/3-Port Mechanical Valve with One-touch Fitting VM100F ・Built-in One-touch fitting reduced installation space and less piping work ・Space saving 　Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter) ・Lightweight 　With ...

DN: 15 mm - 100 mm
Pressure: 16 bar - 40 bar
Temperature: -10 °C - 220 °C

... • - Consisting of on/off valve and actuator • - Tight shut-off for liquids, non-flammable gases, and steam • - Optionally including RFID transponder with unique marking according to DIN SPEC 91406 Accessories • - Type 2 N Strainer • ...

DN: 0.25 in
Pressure: 10 bar

... 616 SentronicHD is a highly accurate 3-way valve with digital control and a broad range of diagnostic functions. The Data Acquisition Software (DaS) that comes with SentronicHD can be used to adjust the valve´s control ...

DN: 65, 100, 80 mm
Pressure: 16 bar
Temperature: 70 °C

... By definition, a pressure reducing valve has to perform well under pressure. Thanks to their intelligent design, GF Piping Systems’ pressure valves will work in any position, allowing them to be integrated into a multitude ...

DN: 0.125 in - 0.75 in
Pressure: 414, 1,035, 690 bar
Temperature: -40 °C - 121 °C

... ®, CTFE Valve Stem 17-4 Stainless Steel Remaining Parts -316 Stainless Steel, Brass Flow CapacityVA Series - Valve: Cv = 0.75 -VG Series Valve: CV = 2.0 Weight (approximate) -VA Series ...

DN: 40 mm - 600 mm
Pressure: 16, 25 bar
Temperature: 80, 60 °C

... accuracy

• Moderated valve reaction for smooth operation
• Protected diaphragm to extend service life
• Optional operation

DN: 1 in - 4 in
Pressure: 10,000 psi - 20,000 psi
Temperature: -29 °C - 121 °C

... Plug Valve is an important high pressure part for well service to allow and stop flow by plug rotation. Jereh plug valves are made from premium alloy steel, with ...

DN: 100 mm - 1,000 mm
Pressure: 0.4, 0.5, 1, 0.3 bar

... dust accumulation level in the valve body and the blade position which meets the requirements of OSHA Combustible Dust Directive, NFPA 654, and NFPA 69. The IsoFlap and IsoFlap-M both have a durable carbon steel valve ...

DN: 4 mm
Pressure: 2 bar - 10 bar
Temperature: 0 °C - 60 °C

... pressure window incorporated, which allows an easy detection of any problems. Moreover the fittings are incorporated into the valve body and are super-rapid ø4. The “NOT” element has an actuating pressure of 0,3 bar. ...

DN: 40, 25, 32 mm
Pressure: 52, 28 bar
Temperature: -60 °C - 120 °C

... environments. The valve's weld-in feature design reduces potential for connection leaks. This design has a higher working pressure, a greater working temperature range and higher flow capacities than competitive products. These valves ...

DN: 6 mm
Pressure: 0 bar - 320 bar
Temperature: -30 °C - 120 °C

... load pressure and temperature changes Meter-in, meter-out or bleed-off flow control Integrated reverse flow check valve Adjusted flow rate depends on the orifice area and adjusted differential pressure Wide range of ...

DN: 10 mm - 250 mm
Pressure: 0 bar - 5 bar
Temperature: 0 °C - 150 °C

... Series 26 valves are bellows sealed and designed for high vacuum applications in pumping systems, semiconductor technology, research systems, etc. Position indicator Position indicator for 120°C Position indicator for 150°C Common conector ...

... Plug valves KLINGER plug valves operate with the same principle used by ball valves. They feature cylindrical or conical “ plugs” with one or more ...

DN: 3.88 in

... a 300-gallon tank in less than 14 minutes. Operation The Magnum GURU® Plug has a higher discharge capacity than the standard GURU® Plug. This thermostatic drain valve responds to the engine coolant ...

Pressure: 207 bar
Temperature: 121 °C

... otherwise be harmed by high temperature samples. The valve responds only to temperature. Under normal operation the valve is fully open. If the sample temperature reaches 120°F, the thermal element within the valve ...

DN: 0.125 in
Pressure: 25 psi - 125 psi
Temperature: -18 °C - 46 °C

... control valves are compact 1/8 ported 4-way valves that may be actuated by hand, remote air signal, electric signal, or mechanically by a machine element. LTV valves are ideal for powering small or medium ...

DN: 2 in - 8 in
Pressure: 15,000 psi
Temperature: -46 °C - 177 °C

... Cameron’s first nonretrievable subsea choke was installed in 1975, and with more than 800 of these rugged chokes installed to date, they continue to demonstrate that they are a proven, reliable choice. Permanently mounted to a subsea structure such ...

DN: 10 mm - 50 mm
Pressure: 25 bar
Temperature: 0 °C - 120 °C

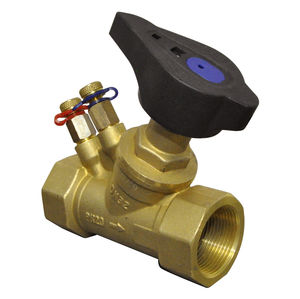

... thread as per DIN/EN ISO 228-1 Flat-sealing regulating valve Differential pressure across the control unit is kept constant; valve authority 1 Valve body and plug made of dezincification-resistant ...

Pressure: 210 bar
Flow rate: 20 l/min

... The Leak Free Solenoid Valve is specifically designed to provide a good quality performance and functionality. It is built with a sub-plate or screw-in, two-way, poppet style normally used to cut off the hydraulic power. It is also available ...

DN: 50 mm - 200 mm
Pressure: 0 bar - 10 bar
Temperature: 0 °C - 150 °C

... combination with the flushing chambers prevent any contact of the product with the environment. On the inside of the valve, the self-draining valve housing with single-seat, leakage chamber and balancer cleaning allow ...

DN: 15 mm - 150 mm
Pressure: 16 bar - 40 bar
Temperature: 0 °C - 220 °C

... 2/2-Way Motorised Control Valves with Electric Actuator for On-Off and Control Application (Motorised to open or Motorised to close type) DATA SHEET MV-5512A/B Fluid: Air, Water, Steam, Gas ...

DN: 1 in - 9 in

... D-AM automatic valves are self-contained with flow actuated overspeed shutdown. They require no external electrical or mechanical input devices. The closing force is provided by the intake air flow passing through the valve. ...
