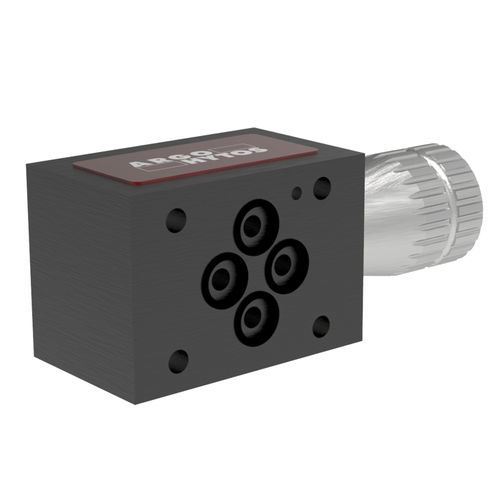

Plug valve VSS1-206hydraulically-operatedadjustmentflow regulator
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- hydraulically-operated
- Function
- adjustment, flow regulator
- Media
- for oil
- Body
- modular
- Number of channels
- 2-way
- Other characteristics
- pressure-compensated, vertical
- DN
6 mm
(0.236 in)- Pressure
Max.: 320 bar
(4,641.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -30 °C
(-22 °F)- Flow rate
Max.: 22 l/min
(5.81 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03) for use in vertical stacking assemblies
Set flow rate independent of load pressure and temperature changes
Meter-in, meter-out or bleed-off flow control
Integrated reverse flow check valve
Adjusted flow rate depends on the orifice area and adjusted differential pressure
Wide range of flow rate options
Quiet and modulated response to load changes
Adjustable by metallic hand screw
Fine low-torque adjustment
In the standard version, the steel parts are zinc-coated for 240 h protection acc. to ISO 9227 and the valve body is phosphated
