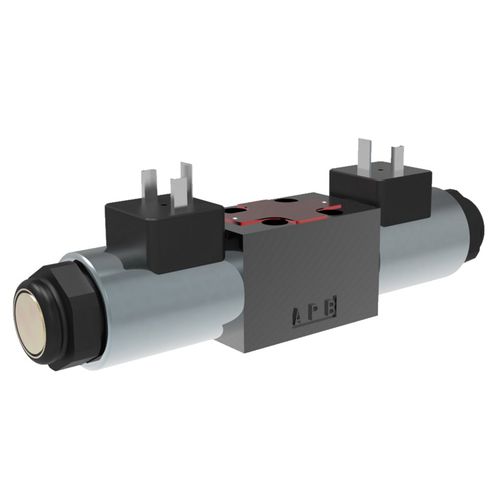

Spool hydraulic directional control valve RPE3-04

solenoid-operated4/3-way4/2-way

Size 04 (02) • Qmax 30 l/min (8 GPM) • pmax 320 bar (4600 PSI) Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 02) High transmitted hydraulic power up to 320 bar with optimized design to minimize pressure drop Three chamber housing design for production cost saving The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge Wide range of solenoid electrical terminal versions available CSA Certificate upon request The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space In the standard version, the valve housing is phosphated for basic surface corrosion protection and as preparation for painting. Steel parts are zinc-coated for 240 h salt spray protection acc. to ISO 9227 Enhanced surface protection for mobile sector available for the valve housing and steel parts (ISO 9227, 520 h salt spray)
