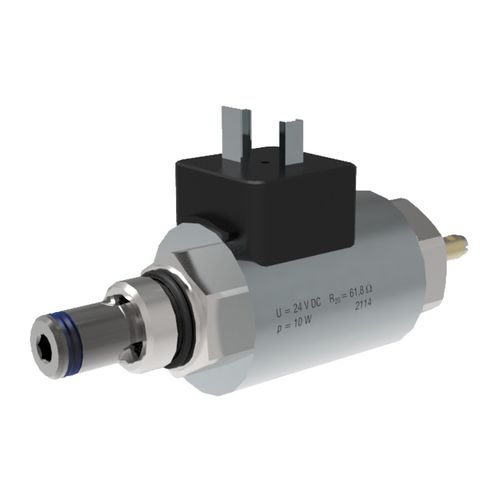

Plug pressure relief valve SR1P2-A2proportional
Add to favorites
Compare this product
Characteristics
- Other characteristics
- plug, proportional
- Controlled pressure
Max.: 350 bar
(5,076.3 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 1.5 l/min
(0.4 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Pressure in the circuit increases proportional to increasing electric command signal
Low hysteresis and accurate pressure control ›› Wide pressure range up to 350 bar
Pilot valve for valves SR4P2-B2 and SP4P2-B3 or a direct acting valve for small flow up to 1,5 l/min
Optional electrical terminal of solenoid: EN 175301-803-A, AMP Junior Timer or Deutsch DT04-2P
Coil supply voltage 12 or 24 V DC
In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227. Enhanced surface protection for mobile sector available for the steel parts (ISO 9227, 520 h salt spray)
