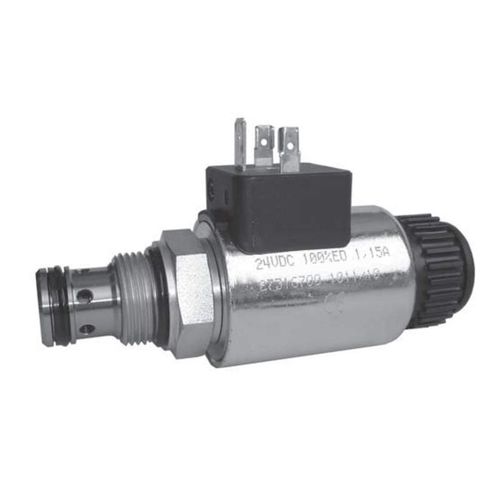

Poppet hydraulic directional control valve ROE3-042S5(S6)solenoid-operateddirect-operated2/2-way
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- solenoid-operated, direct-operated
- Ports/positions
- 2/2-way
- Function
- normally closed, normally open
- Other characteristics
- cartridge, for high flow rates
- Operating pressure
Max.: 250 bar
(3,625.94 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 25 l/min
(6.6 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Screw-in cartridge valve with connecting thread M22x1.5
All ports may be fully pressurized with maximum pressure 250 bar
Valve closes leak-free in both flow directions
Precisely manufactured parts and hardened poppet
Normally open or normally closed version
Optional type of manual override
Coil interchangeability among ROE / RPE3-04 product line
The valve in standard version is zinc-coated with surface protection 240 h in NSS acc. to ISO 9227
