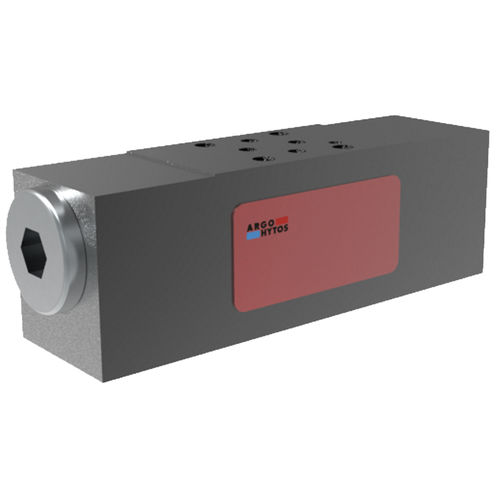

Poppet check valve VJR1-04/M
pilot-operatedmodularfor high flow rates

poppet check valve
poppet check valve
poppet check valve
Add to favorites
Compare this product


Characteristics

Type
poppet
Other characteristics
pilot-operated, modular, for high flow rates
DN

4 mm
(0.157 in)

Pressure

Max.: 320 bar
(4,641.2 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 120 °C
(248 °F)

Min.: -30 °C
(-22 °F)

Flow rate

20 l/min
(5.28 us gal/min)

Description

Size 04 (D02) ● Qmax 20 l/min (5 GPM) ● pmax 320 bar (4600 PSI) Pilot to open check valve, poppet-type with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 02) Sandwich plate design for use in vertical stacking assemblies Sharp-edged steel seats for dirt-tolerant performance Leak-free closing, suitable for fast cycling with long life High flow capacity In the standard version, the valve housing is phosphated and steel parts are zinc-coated for 240 h protection acc. to ISO 9227
