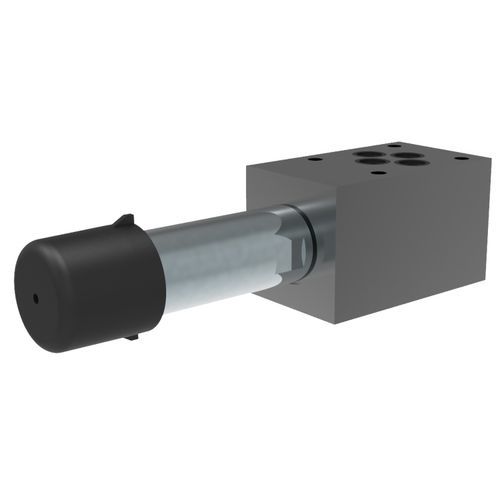

Pilot-operated relief valve VRN2-06/S
Add to favorites
Compare this product
Characteristics
- Other characteristics
- pilot-operated
- Controlled pressure
Max.: 320 bar
(4,641.2 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 40 l/min
(10.57 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
M22x1.5 • Qmax 40 l/min (11 GPM) • pmax 320 bar (4600 PSI) Symbol
Excellent stability throughout flow range with rapid response to dynamic pressure changes
Low hysteresis, accurate pressure control and low pressure drop
Reverse relief protection
Wide pressure range up to 320 bar
High flow capacity
Hardened precision parts
Adjustable by allen key or hand screw, optionally sealable (lockwire holes)
In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227
