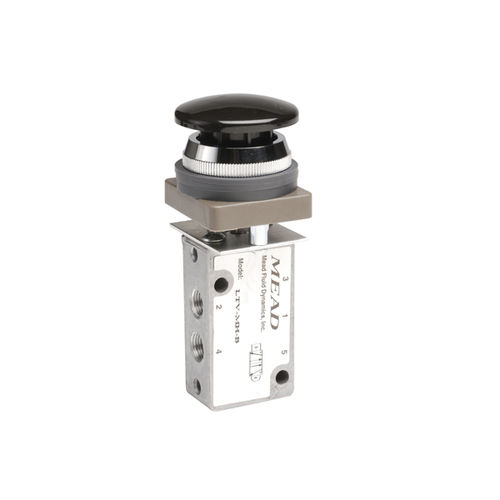

plug valve / pneumatically-operated / normally closed / normally open
LTV series

{{requestButtons}}

Characteristics

  • Type:

    plug

  • Operation:

    pneumatically-operated

  • Other characteristics:

    normally closed, normally open, 3-way, 4-way

  • Pressure:

    Max.: 125 psi

    Min.: 25 psi

Description

Light-Touch Actuation
Light-Touch, snap acting control valves are compact 1/8" ported 4-way valves that may be actuated by hand, remote air signal, electric signal, or mechanically by a machine element. LTV valves are ideal for powering small or medium sized cylinders and for piloting larger valves. Some models require as little as 4 ounces of force and .010" of plunger travel to actuate.
•Ideal for powering small or medium sized cylinders and for piloting larger valves
•All models may be configured 3-way normally open, 3-way normally closed, or 4-way
•Twenty-seven different actuators to choose from
•Operating pressure: 25-125 PSI
•Flow of Cv = 0.24
•Available as stacked valves
Features and Beneîlts
•Snap-Acting Control Valves:
-Idéal for powering small or medium sized cylinders
-Select single pressure, double pressure, or low pressure pilot actuation
•Numerous Options and Configurations:
-Ail models may be configured 3-way normally open, 3-v/ay normally closed, or 4-v/ay
•Stacking Option Reduces Piping Requirement:
-Eliminâtes the need for separate air supply to each valve
-Idéal for consolidating components within a panel or device
•Space Efficient and Cost Effective:
-Rugged cast aluminum body construction
-Easy to mount and install
Engineering Specifications Pressure Rating: 25 to 125 PSI Temperature Range: 0° F (-18° C) to 115° F (46° C) Flow: Cv = 0.24 Lubrication: Petroleum base oil Filtration: 40 micron minimum
