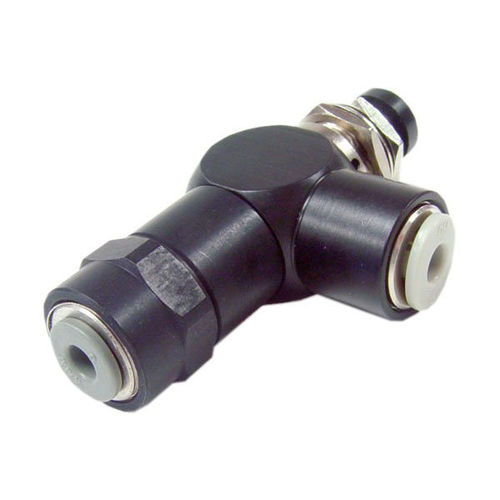

Plug valve 11 seriesmanual2-waynormally closed
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- manual
- Number of channels
- 2-way
- Other characteristics
- normally closed, push-in
- Pressure
Max.: 125 psi
Min.: 0 psi
- Temperature
Max.: 160 °F
(71 °C)Min.: -20 °F
(-29 °C)- Flow rate
9 ft³/min, 10 ft³/min, 19 ft³/min, 222 ft³/min
(0.25 m³/min, 0.28 m³/min, 0.54 m³/min, 6.29 m³/min)
Description
“11” Series valves are available with a 5/32 push-in input port and a choice of 1/8 NPT(F), ¼ push-in or 5/32 push-in output ports. The output port also swivels to ease alignment during installation. Actuator options include push button, detented toggle and momentary toggle. The internal poppet design of this 2-way valve contributes to a long product life.
•Input ports: 1/8 NPT (F), 1/4 or 5/32 Push-in
•Output port: 1/8 NPT (F), 1/8 NPT, 1/4 or 5/32 Push-in
•Cracking Pressure: less than 1.0 psi
•Flow Rate at 125 psi: 33 scfm
•Operating Pressure: 0 to 125 psi
•Push-in ports reduce installation time
