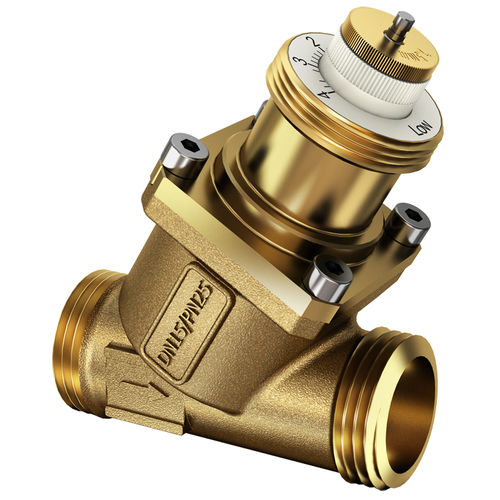

Regulating valve VDL0 series

plugelectricfor control

How energy efficiency is improved Automatic dynamic hydronic balancing with the SAUTER Valveco compact regulating valve provides correct supply to the consumers and a reduction of temperature variations in the room, so that the use of energy is more accurate and more efficient. Features Regulating valve with three functions: Control, preset maximum volume, automatic flow regulation Easy to preset the max. required volume flow Control range 14/15…400 kPa = max. Δp over the valve Versions with and without pressure measurement nipple The valve is closed when the spindle is moved in Closing against the pressure Slight adaptation of the proven SAUTER actuator technology Regulating valve with male thread as per DIN/EN ISO 228-1 Flat-sealing regulating valve Differential pressure across the control unit is kept constant; valve authority 1 Valve body and plug made of dezincification-resistant (DZR) brass Stainless-steel spindle
