Compressed air filtration unit airvision
pressuremodular

compressed air filtration unit
compressed air filtration unit
compressed air filtration unit
compressed air filtration unit
compressed air filtration unit
compressed air filtration unit
Add to favorites
Compare this product


Characteristics

Technology
pressure
Designed for
for compressed air
Other characteristics
modular
Filtration size

0.01 µm

Operating pressure

Min.: 0.5 bar (7.25 psi)

Max.: 16 bar (232.06 psi)

Description

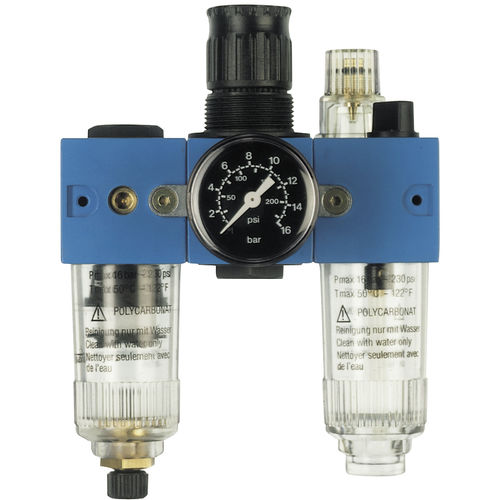

• Air preparation equipment in economy construction with modern modular design, offering various combinations and attractive prices. • Filters, fine filters, pressure regulators, fog lubricators and filter pressure regulators, additionally with distributors, ball valves with relieving, starting valves and magnetic valves. • Connection to maintenance units by flanging with insert and sealing ring. • Three sizes with connecting threads from G1/8 to G1. Our series airvision L is an economy construction in sizes ¼“ und 1/8“. Filter Compressed air filter in modular design for cleansing the compressed air of humidity (by means of cycloning) and solid particles. Can be flanged on either side for additional airvision equipment. Port sizes G1/8 to G1. Special-Filters Compressed air filters in modular design remove almost without residue the smallest remaining particles of water, oil or dirt to 99,999% (for 0,01 ?m). Port sizes G1/8 to G½. Pressure Regulators Compressed air pressure regulators in modular design maintain constant working pressure regardless of pressure fluctuations in the system or of air consumption. Flanging is possible on both sides for adding other airvision equipment. Port sizes G1/8 to G1. Secondary air exhaust (relieving) and almost complete independence of primary pressure. Diaphragm regulator with working pressure ranges 0,5 to 6, 10 and 16 bar. Adjustment can be locked by pressing the handwheel. Gauge can be mounted on back or front.
