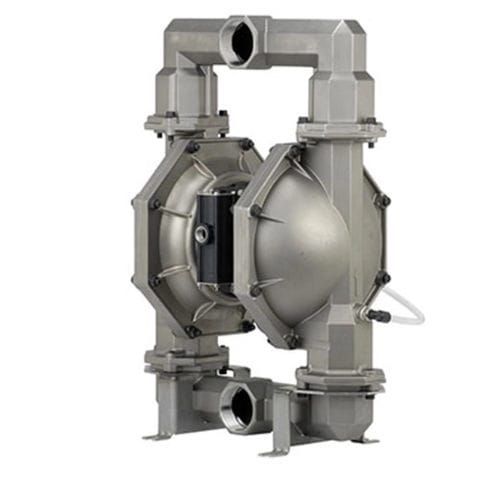

Diaphragm pump PH series

airelectricstationary

The ARO high pressure air diaphragm pump was developed for applications requiring fluid pressures in excess of the 100 psi allowed by traditional pumps. Compared to a standard diaphragm pump, our 2:1 ratio high pressure diaphragm pump can produce up to 200 psi at about half the flow rate. The 2:1 ratio is accomplished by using the effective surface area of both diaphragms to double the output pressure. Features Utilizing Power - Can produce up to 200 psi, at about half the flow rate of a standard diaphragm pump. Our high pressure air operated diaphragm pump utilizes the effective surface areas of both diaphragms to double output pressure. Structural Integrity - Bolted construction eliminates problems associated with leaking band-clamps while also reducing maintenance costs. Simul-Shift™ and Quick Dump™ valve technology for stall free and ice free operation Intelligent Design - Modular major valve design for easy repair and maintenance Built to Last - Convoluted diaphragms for long life Size - Available in 3", 2" and 1.5" port sizes
