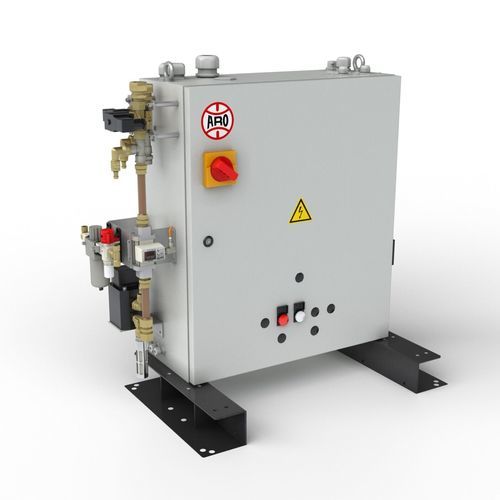

Process control system SW series

monitoringqualityfor welding

ARO provides a standard range of MFDC welding cabinets covering manual, robot and stationary machine applications. They integrate a complete and coherent range of inverters (also available as components) with embedded controllers compatible with a large majority of field buses such as Ethernet IP, Profinet IO, DeviceNet, Interbus-S, Profibus DP. •Ability to manage up to 256 welding schedules •Wide choice of options •Compact designWorker safety •Maximum flexibility •Adaptive Welding and Quality Assurance Self LEARNING Possibility to copy the Learning (reference) from a gun to any other Adaptive mode will compensate : ▪ Different materials and thicknesses (for manual welding) ▪ Tips wear ▪ Presence of adhesive ▪ Poor part fit ▪ Shunting effects ▪ Shunting effects Intelligent and efficient, Adaptive Welding automatically compensates process variations to guarantee superior weld quality. •Steel Quality Assurance function (SQA) assigns a % to each spot to grade the quality of the welding •Dedicated to robotized applications, the principle is also based on dynamic resistance during the weld formation •It povides with weld quality and process deviations
