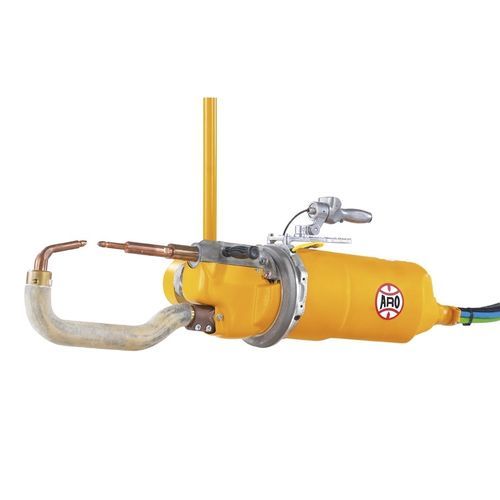

Welding gun Ergoline

airmanualelectric

Product overview
ARO Ergoline is a modular family of manual resistance welding guns designed for spot welding applications where safety, ergonomics and process reliability are essential. The modular architecture allows configuration to customer specifications and integration with ARO control systems.

Ergoline — manual welding

• Modular welding guns for manual resistance welding and spot applications.
• Configurable to different frames and accessories to match production needs.
• Compatible with MFDC–AC power technologies.

Advantages

• Modular design enables quick adaptation to client standards and multiple station layouts.
• Wide choice of ergonomic options to optimise operator comfort and workflow.

Reduced operating costs

• Ergonomic design simplifies handling, reducing cycle times and improving productivity.
• Removable covers provide fast access to wear parts for maintenance.
• Homogeneous, modular components reduce spare-part diversity.
• Simplified electrical, pneumatic and cooling circuits minimise downtime.

Models / Variants

• CLA — Frame: C; Technology: MFDC – AC
• CMA — Frame: C; Technology: MFDC – AC
• CWA — Frame: X; Technology: MFDC – AC
• XLA — Frame: X; Technology: MFDC – AC
• XMA — Frame: X; Technology: MFDC – AC
• XPA — Frame: X; Technology: MFDC – AC
• XWA — Frame: X; Technology: MFDC – AC
• ERGOWELD 10K / ERGOWELD IT / ERGOWELD 14K — application and cooling vary by model (see technical specifications).

Controls & Software (related products)
ARO supplies matching controls, transformers, power cabinets and dedicated welding-sequence and cabinet-monitoring software to provide complete power and process control for resistance welding stations equipped with Ergoline guns.

Downloads
Brochure available: ARO Manual Welding Ergoline (download via product page).

Technical specifications

• Product type: Modular manual resistance welding gun (Ergoline family).
• Frame types: C and X depending on variant.
• Technology: MFDC – AC across listed variants.
• Actuation: pneumatic actuation (typical).
• Cooling: air or water depending on model.
• Max. welding current: typically 10–13 kA depending on variant.
• Design force: approx. 4.5 kN (model dependent).
• Maintenance: removable cover for rapid access to wear parts.
• Compatibility: integrates with ARO controls and monitoring software for sequence and cabinet supervision.
