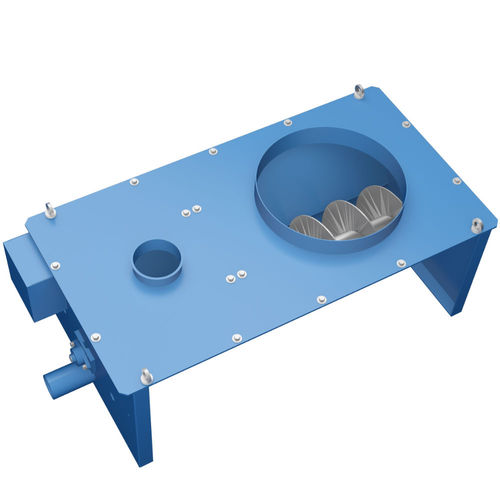

Chip suction unit VSS 300

industrialwith vacuum pump

The vacuum suction unit conducts the shredded chips via a worm conveyor to an intake port connected to the suction system. The vacuum suction unit is normally mounted downstream of the discharge conveyor of a machine tool. As an option, a shredder can be used upstream, in order to break up the chips to an extractable quality. Throughput capacity: - up to approx 2000 kg/h Driving power of screw conveyor: - 0,25 kW Weight (net): - ca. 172 kg Dimensions L x W x H: - 1645 x 740 x 490 mm Feed opening L x W: - variable up to max 760 x 640 mm
