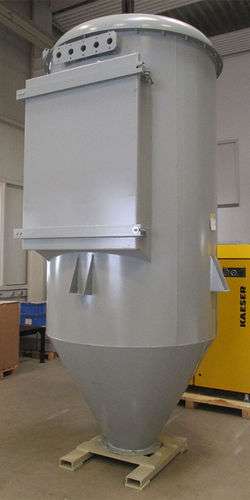

Chip separator 1600
cyclonewith filter

Chip separator - 1600 - ARP GmbH & Co. KG - cyclone / with filter
Chip separator - 1600 - ARP GmbH & Co. KG - cyclone / with filter
Chip separator - 1600 - ARP GmbH & Co. KG - cyclone / with filter - image - 2
Chip separator - 1600 - ARP GmbH & Co. KG - cyclone / with filter - image - 3
Add to favorites
Compare this product
Go to the ARP GmbH & Co. KG website for more information

Characteristics

Separated substance
chip
Technology
cyclone
Other characteristics
with filter

Description

Combination of separator and filter. This component is used to remove the chips from the suction system, and the filter also removes particles from the transported air, before it is conducted to the suction fan. Site of operation: - In the chip suction system Weight: - ca. 2040 kg Dimensions Ø x H: - 1600 x 4034 mm Outlet opening Ø: - DN 400 Suction opening Ø: - DN 150 Filter elements: - 10 ea.
