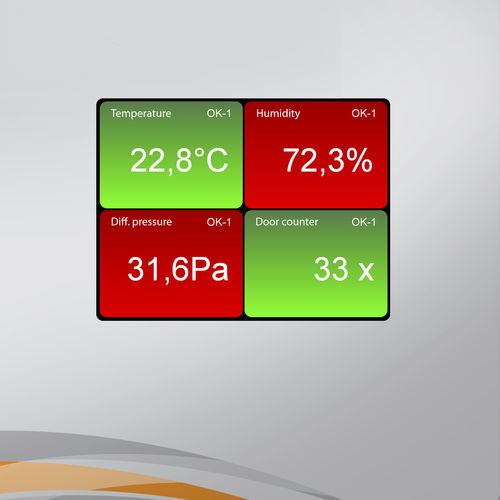

Indicator with touch screen 4595

temperatureambient temperatureDC voltage

• Touch-screen • 1 to 4 values visible • Housing with connectors • Simple operation and programming • Analog and digital inputs • UTP connector / Ethernet • USB • Modbus • Simple menu structure freely programmable 4-digit digital display (display range -999 to 9999) with a large 20 mm high LED displays in DIN 96 x 48 mm housing for the display of 2 parameters. As input voltages can 0…1 V, 0…10 V or 0/4…20 mA streams are processed. It provides the indicator for supplying a DC voltage of 2 two-wire transmitters. The display is automatically switched in a cycle of about 5 seconds on the two measures. The indicators, in conjunction with our combined humidity temperature transmitters PFT 22 are used to indicate these two metrics. The supply of the indicator can be done with 230 Vac or 24 Vac or 24 Vdc. The display size and the units of the measured values ​​are printed on the front panel. TECHNICAL SPECIFICATIONS: Analog unit: 0 … 10 VDC, 0/4 … 20 mA (switchable via jumper) Digital input: Logic 0 = 0 … 6V / logic 1 = 18-24V (maximum 1000 Hz) Ambient temperature: -10 to + 50 ° C Humidity: 5% to 90% (non-condensing) Inputs: 4 x analog, 4 x digital, RS485, Modbus RTU Outputs: 2 x Relay: 125 VAC -0.5A; 30VAC-1A; 60 VDC – 0.3 A / 5 msec; RS-232, RS485; +24 VDC (2x) max. 0.5A Ethernet: Standard 10/100 Mbaud USB: Standard PC SD input: Micro SD Description Supply voltage: 24 VDC +/-20% or 24 VAC +10%/-20% Power consumption: 12VA Input impedance: 150 mA / 15 kOhm Display: 3.5\" TFT color display Dimensions: 150 x 120 x 50 mm Installation dimensions: 127 x 107 mm Installation: panel installation (snap-in) Humidity: 5% to 90% (non-condensing)
