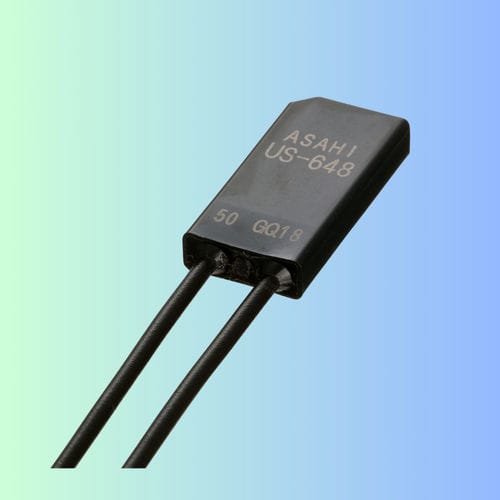

Bimetallic thermostat US-648

differentialNC48VDC

The US-648 is a lead-wire attached bimetallic device that responds to temperature changes. Its main function is to regulate the temperature within a range defined by the user. It does this by automatically switching the electrical circuit ON and OFF, ensuring that the temperature remains within the desired limits, depending on its applications. ★ Available in Hot-Melt filler. ★ Features： Waterproof, Small & Flat design, User's request lead-wire assemblies are available. ★ Please contact us for specifications if they exceed the standard specification. ★ Standard Specification Electrical Rating："A" Contact Type：48 VDC 3A max. (200mA min.) Temperature Setting range：30℃~100℃ Circuit resistance："A" Contact Type：70mΩ or Less Insulation resistance：100MΩ or Avobe 【 With 500 VDC megger】 Withstand voltage："A" Contact Type：1,500 VAC/ 1 minute Thermal resistance： 120℃ 【Expect Lead wire】 Cold resistance： -20℃ Opening-closing durability：100,000 times or more [under rated load] ★ Application: Automotive-Seat heater, Side-mirror heater, Arm-rest/Foot-rest heater, Drink-holder Heater, Door Panel Heater, BatteryPack Heater, Head pads, etc. ★ This Thermostat is widely used in a broad range of temperature control applications for the Automobile Industry and Residential equipment. ★
