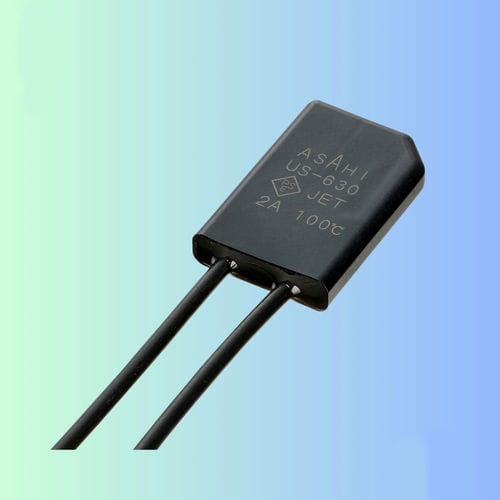

Bi-metal thermostat US-630

differentialNONC

The US-630 is a lead-wire attached bimetallic device that responds to temperature changes. Its main function is to regulate the temperature within a range defined by the user. It does this by automatically switching the electrical circuit ON and OFF, ensuring that the temperature remains within the desired limits, depending on its applications. ★ Available in Thermal Fuse including type, Multiple series connected type, S.O.D. (Single Operation Device) or One shot type, DC 12V 15A & DC 48V ★ Features： Waterproof, Flat design, User's request lead-wire assemblies are available. ★ Please contact us for specifications if they exceed the standard specification. ★ Standard Specification ➡ Electrical Rating："A" Contact Type：125 VAC 8A max. (200mA min.) 　　　　　　　　　　"A" Contact Type：250 VAC 4A max. (200mA min.) ➡ Temperature Setting range：0℃~120℃ ➡ Circuit resistance："A" Contact Type：70mΩ or Less ➡ Insulation resistance：100MΩ or Avobe 【 With 500 VDC megger】 ➡ Withstand voltage："A" Contact Type：1,500 VAC/ 1 minute ➡ Thermal resistance： 130℃ 【Expect Lead wire & thermal Fuse】 ➡ Cold resistance： -20℃ ➡ Opening-closing durability：100,000 times or more [under rated load] ★ Application: Floor Heating, Head pads, Vending machine, etc. ★ This Thermostat is widely used in a broad range of temperature control applications for Residential equipment and industrial and commercial equipment. ★
