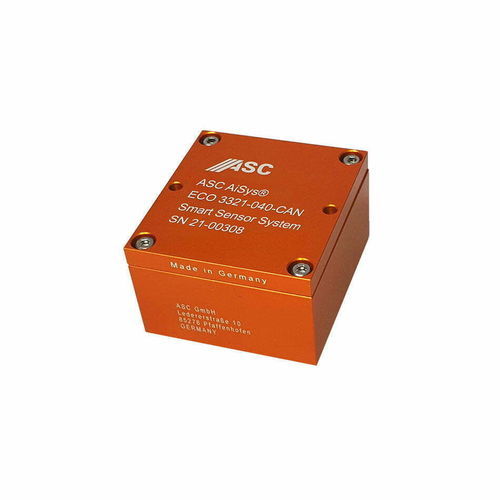

Triaxial accelerometer ASC AiSys® ECO 3321

MEMScapacitiveCAN Bus

Overview
The smart sensor system ASC AiSys® ECO 3321 acquires and analyses accelerations. Preconfigured FIR and IIR filters and feature-extraction algorithms run on board. The triaxial accelerometer uses MEMS capacitive technology, offers configurable ranges from ±2 g to ±40 g and supports sampling rates up to 4 kHz per axis. Integrated electronics provide 20-bit acquisition resolution.

Technology

• Sensor technology: MEMS, capacitive
• Sensitive directions: Triaxial
• Output/interface: CAN bus
• Configurable measurement ranges: ±2 g, ±4 g, ±8 g, ±10 g, ±20 g, ±40 g
• Sampling rate: up to 4 kHz per axis
• Resolution: 20 bits
• On-board preprocessing: FIR and IIR filters; feature extraction algorithms (preconfigured)

Housing
The unit features a lightweight aluminium housing with protection class IP67, an integrated cable with configurable length, and a standardized CAN bus interface with an assembled DSUB connector at the cable end.

Applications
The ASC AiSys® ECO 3321 is designed for real-time condition monitoring of components, vehicles, machines and infrastructure. It supports fusion of historical and current data for trend analysis, predictive maintenance and integration into digital twins to help automate and optimise process flows.

Specifications

• Sensor type: Triaxial accelerometer (MEMS, capacitive)
• Configurable ranges: ±2 g, ±4 g, ±8 g, ±10 g, ±20 g, ±40 g
• Sampling rate: up to 4 kHz per axis
• Resolution: 20 bits
• On-board processing: FIR and IIR filters; feature extraction algorithms
• Output/interface: CAN bus (standardized; cable with DSUB connector)
• Housing material: Aluminium
• Protection class: IP67
• Operating temperature: -40°C to +125°C
• Integrated cable with configurable length
