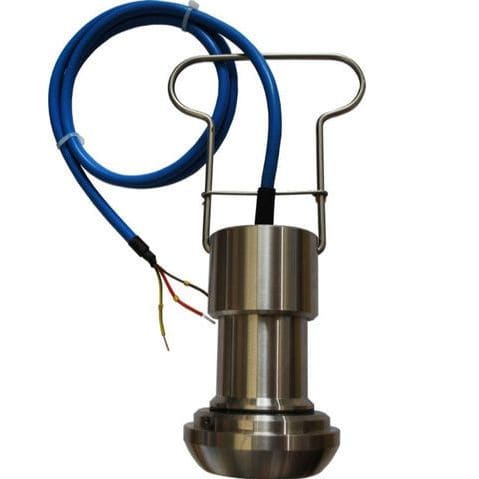

Piezoresistive pressure sensor PR1071F

relative4-20 mAstainless steel

These sensors for very high pressures are made from treated and aged stainless steel. They are completely machined from a single piece of material, offering excellent qualities of robustness, endurance and resistance to corrosion. The pressure-sensitive part, fitted with a bridge of semi-conductor (800 series) or metal (850 series) piezo-resistive gauges, gives them very good fatigue resistance. The conical metal/alloy metal pressure connection with 2 inverted screw threads provides excellent vibration resistance. This high-pressure sensor is made from treated and aged stainless steel. It is completely machined from a single piece of material, offering excellent robustness, endurance and corrosion resistance. The pressure-sensitive part is fitted with a piezoresistive metal gauge bridge, giving it excellent fatigue resistance. A removable carrying handle makes it easy to fit and remove the sensor in complete safety. The standard 4-20 mA analogue output can be used with an appropriate zener barrier. Connection to 2" Union Hamme This sensor is ATEX and IECEX certified for Zero Zone. Int. ref (UK) PR1071F : Transmitter-4-20mA-Pressure-15K PSI-2" Hammer-Ex ia IICT4 GA
