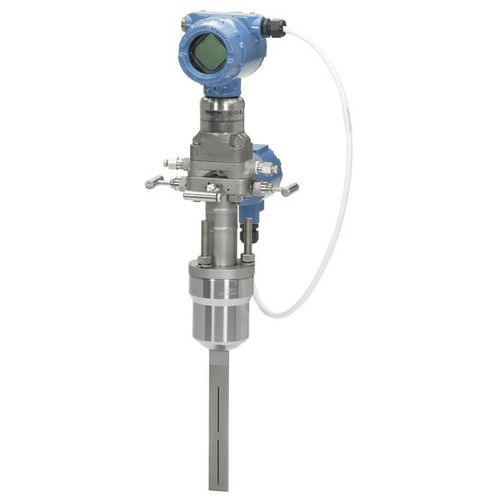

Pitot tube flow meter 3051SFA Annubar™

massfor liquidsDN50 - 2"

The Rosemount 3051SFA Annubar Flow Meter is a no-equal solution with a patented, averaging pitot tube that delivers superior measurement accuracy over a wide flow range. This flow meter can measure multiple variables and is engineered with an integrated thermowell for temperature measurement. Its patented T-shaped sensor is capable of obtaining measurements via a single pipe penetration while maintaining a small profile in the pipe to reduce permanent pressure loss and increase energy savings. Specifications Warranty Up to 15-year limited warranty Rangedown Up to 200:1 (14:1 flow turndown) Line Size 2 to 96 in. (50 to 2440 mm) Output Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow Communication Protocol 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus Process Wetted Material 316 SST, Alloy C-276 Diagnostics Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications Features Designed with built-in flow calculations for direct reporting of fully-compensated mass flow Patented T-shape sensor creates a fixed separation point for DP signal improvement over a wider flow rate Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
