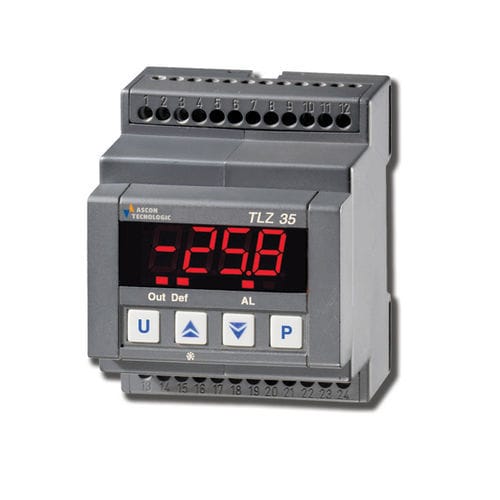

NTC thermostat TLZ35relayDIN railIP20
Add to favorites
Compare this product
Characteristics
- Heating technology
- NTC
- Contact type
- relay
- Mounting
- DIN rail
- Protection level
- IP20
- Other characteristics
- digital, on/off
- Temperature
25 °C
(77 °F)- Switching power : voltage
Max.: 240 V
Min.: 12 V
Description
Thermostat, 1 input and up to 2 outputs
Digital thermostat for DIN rail mounting, it has 1 input for temperature probes and 1 digital input for voltage-free contacts.
It can have up to 2 relay outputs and an internal buzzer that allows the signaling of any alarms.
FUNCTION -
Controller
DIMENSIONS -
DIN rail mounting
DISPLAY -
1 display with 4 digit
POWER SUPPLY -
12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac
INPUTS -
NTC, PTC-NTC
NUMBER OF OUTPUTS -
1, 2
OUTPUTS -
Relay
INTERFACE -
RS 485 with external module A30, TTL Modbus
SPECIAL FUNCTIONS -
Acoustic alarm (buzzer), Real time clock
CONTROL -
ON/OFF
EXTRACTABILITY -
Not extractable, With fix terminal block
DEFROST CONTROL -
At intervals with for compressor stop
CERTIFICATIONS -
CE, UL
