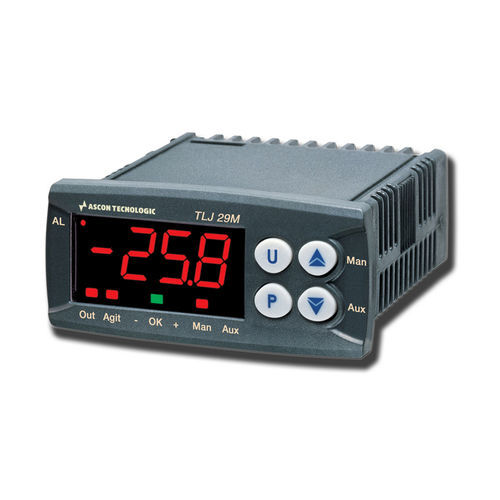

Digital temperature controller TLJ29MIP65panel-mount
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Protection level
- IP65
- Other characteristics
- panel-mount
- Maximum temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
It is a digital controller for milk storage applications, with ON/OFF temperature control and agitator control.
The instrument provides up to 3 relay outputs, an input for PTC or NTC temperature probes and a digital input.
The 3 outputs can be used to control the compressor or the temperature control device, the agitator and an auxiliary or alarm device.
The instrument also has an internal buzzer for signaling alarms.
Technical specifications
Dimensions -
78 x 35 mm
Display -
1 display with 4 digit
Power supply -
12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac
Inputs -
PTC-NTC + 1 digital
Number of outputs -
3
Special functions -
Agitator control
Control -
ON/OFF
Communication -
TTL Modbus
Certifications -
CE
Catalogs
REFRIGERATION CATALOGUE 2020
85 Pages
