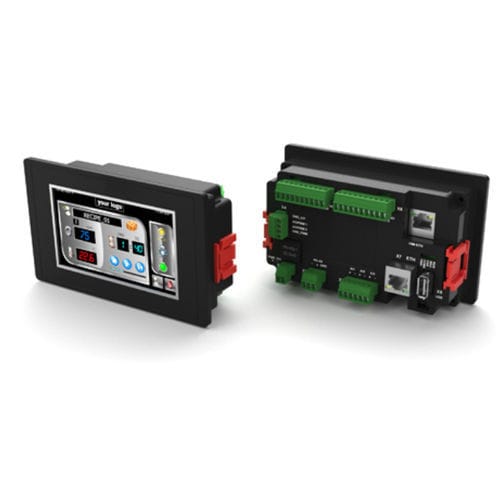

2 analog inputs PID controller vP4

RS-485Ethernetmulti-function

Overview
SigmaPAC line. All-in-one controller with integrated 4.3" graphical operator interface (HMI), PLC, I/O channels and PID regulation management. Support included.

• 4.3" graphical operator interface (HMI)
• Programmable PLC controller
• I/O channels
• PID regulation management

Programming & compliance
visualPAC is programmable in all five IEC 61131-3 languages and includes ready-to-use function block libraries to simplify development. Complies with national Transition 4.0 requirements.

Applications

• Electric deck and rotor ovens

Features

• Display: 4.3" TFT LED backlit
• Power supply: 24 Vdc
• Analogue inputs: 2 on board (+1 optional)
• Digital channels: 6+2 inputs + 8 outputs
• Analogue outputs: 2 (current or voltage), supports 0/4…20 mA and PWM frequency outputs
• Communication: RS-485; Ethernet
• Special functions: advanced libraries, real time clock (RTC), USB port
• Certifications: CE

Technical specifications

• Model: vP4
• Function: Multiloop programmable controller
• Dimensions: LxHxP 142 x 86 x 50 mm
• Display: TFT 4.3" LED backlit
• Power supply: 24 Vdc
• Analogue inputs: 2 (standard) + 1 optional
• Digital channels: 6+2 inputs, 8 outputs
• Number of outputs (configurable): 0 / 2
• Output types: 0/4…20 mA, Frequency (PWM)
• Communication: RS-485, Ethernet
• Special functions: advanced libraries, RTC, USB
• Certifications: CE
