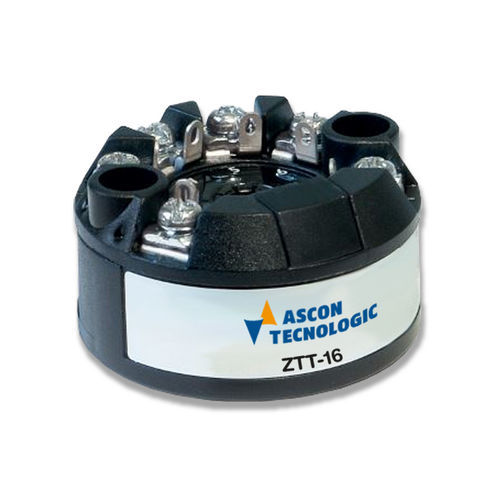

Probe head-mounted temperature transmitter ZTT-16Pt100Pt1000Pt500
Add to favorites
Compare this product
Characteristics
- Mounting
- probe head-mounted
- Input type
- Pt100, Pt1000, Pt500, thermocouple
- Output signal
- USB
- Other characteristics
- programmable
Description
Mathematical functions
Programmable with dedicated software and USB interface (optional)
Sensor reference
Custom linearization
Sensor burnout detection
Output current preset
Diagnostics
Technical specifications
Dimensions -
Ø 43 x 21 mm
Power supply -
10… 35 Vdc
Inputs -
2x Universal linearized for PT100, PT500, PT1000, NI100, NI120, NI1000, Thermocouples (K, J, E, N, T, R, S, L, U, B, C, D, G), mV, thermistors
Outputs -
4… 20 mA
Range -
-200… 2300°C
Overall accuracy -
0.1% f.s.
Operating temperature -
-40… +85°C
Conformity -
CE, ATEX, S.I.L.
