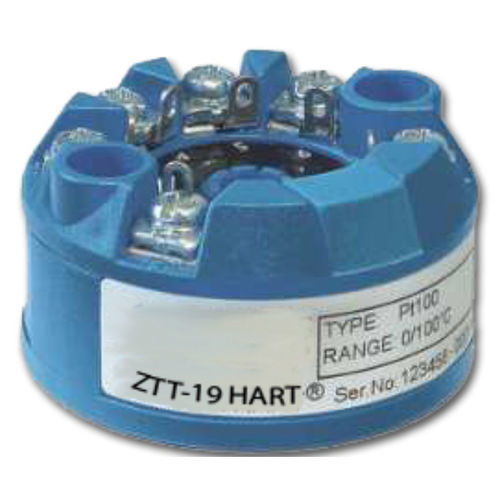

Probe head-mounted temperature transmitter ZTT-19Pt100Pt1000Pt500
Add to favorites
Compare this product
Characteristics
- Mounting
- probe head-mounted
- Input type
- Pt100, Pt1000, Pt500, thermocouple
- Output signal
- HART
Description
ATEX and S.I.L. certification
Mathematical functions
Sensor reference
User calibration
Custom linearization
Sensor burnout detection
Output current presetting
Technical specifications
Dimensions -
Ø 43 x 21 mm
Power supply -
10… 35 Vdc
Outputs -
4… 20 mA
Range -
-200… 2300°C
Overall accuracy -
0.1% f.s.
Operating temperature -
-40… +85°C
Conformity -
CE, ATEX, S.I.L.
Catalogs
No catalogs are available for this product.
See all of ASCON TECNOLOGIC‘s catalogsOther ASCON TECNOLOGIC products
SENSORS and TRANSMITTERS
