Radial fan EH.VE seriesextractionventilation230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- radial
- Function
- extraction, ventilation
- Supply voltage
- 230VAC, 400VAC
- Drive mechanism
- with asynchronous motor
- Material
- PP
- Other characteristics
- IP55, explosion-proof
- Air flow
Min.: 60 m³/h
(2,118.88 ft³/h)Max.: 250 m³/h
(8,828.667 ft³/h)- Rotational speed
2,760 rpm, 2,850 rpm
(17,342 rad.min-1, 17,907 rad.min-1)- Noise level
45 dB
Description

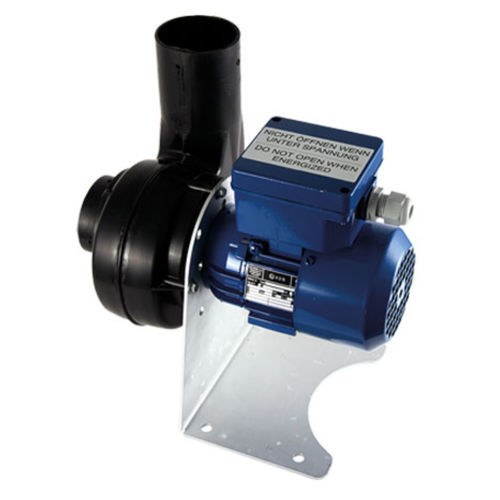

Fans for a powerful and safe ventilation of safety storage cabinets.
• Housing and impeller made of polypropylene
• Sealed against gas emission
• Connecting fitting DN 75
• Protection class IP 55
• Air flow 60-250 m³/h
• Total pressure 240-175 Pa
• Incl. PA/GFK console
