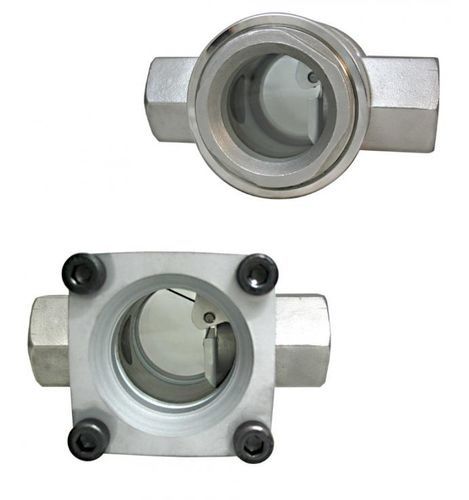

Monitoring sight glass AI.Tstainless steeltempered glass facingthreaded
Add to favorites
Compare this product
Characteristics
- Specifications
- monitoring, stainless steel, tempered glass facing, threaded
- DN
Max.: 50 mm
(2 in)Min.: 15 mm
(0.6 in)- Temperature
Max.: 300 °C
(572 °F)Min.: 150 °C
(302 °F)- Operating pressure
Max.: 39 bar
(566 psi)Min.: 10 bar
(145 psi)
Description
The AI.T Series flow indicator is the ideal instrument for immediate visual monitoring of fluid and gas flow within industrial systems. Thanks to its internal spring-loaded vane system, it allows clear flow observation from any direction, ensuring accuracy and operational safety.
Main Features
Double Inspection Window: Provides excellent visibility of the flowing fluid.
Rugged Design: Made of high-quality stainless steel (SS304, SS316, or SS316L) to withstand corrosive environments and harsh conditions.
Versatile Materials: Seals available in Teflon, Gore-Tex, Graphite, or Sigma 533 to accommodate a variety of chemical compatibilities.
High Resistance: Designed to operate at pressures up to 40 kg/cm² and temperatures up to 270°C (depending on the materials chosen).
Certified Safety: Available in ATEX/IECEx version for use in potentially explosive atmospheres (Ex h IIC Tx Gb).
Technical Specifications
Body Material: 304, 316, or 316L stainless steel.
Glass: High-strength tempered glass.
Connections: 1/2" to 2" NPT, PF, or PT threads.
Maximum Pressure: 16 kg/cm² (TA Series), up to 40 kg/cm² (TB Series).
Temperature Range: -40°C to +270°C (depending on the gasket).
Common Applications
Water treatment systems.
Industrial flow systems.
Monitoring of compatible gases and liquids in chemical and petrochemical processes.
Available Configurations
Choose the model that best suits your needs:
TA: Standard model with pressure up to 16 kg/cm².
TB: High-pressure model (up to 40 kg/cm²).
TB-DP: Version with external SS304 protective grille for greater glass safety.
TB-DG: Reinforced double-glazed version.
Main Features
Double Inspection Window: Provides excellent visibility of the flowing fluid.
Rugged Design: Made of high-quality stainless steel (SS304, SS316, or SS316L) to withstand corrosive environments and harsh conditions.
Versatile Materials: Seals available in Teflon, Gore-Tex, Graphite, or Sigma 533 to accommodate a variety of chemical compatibilities.
High Resistance: Designed to operate at pressures up to 40 kg/cm² and temperatures up to 270°C (depending on the materials chosen).
Certified Safety: Available in ATEX/IECEx version for use in potentially explosive atmospheres (Ex h IIC Tx Gb).
Technical Specifications
Body Material: 304, 316, or 316L stainless steel.
Glass: High-strength tempered glass.
Connections: 1/2" to 2" NPT, PF, or PT threads.
Maximum Pressure: 16 kg/cm² (TA Series), up to 40 kg/cm² (TB Series).
Temperature Range: -40°C to +270°C (depending on the gasket).
Common Applications
Water treatment systems.
Industrial flow systems.
Monitoring of compatible gases and liquids in chemical and petrochemical processes.
Available Configurations
Choose the model that best suits your needs:
TA: Standard model with pressure up to 16 kg/cm².
TB: High-pressure model (up to 40 kg/cm²).
TB-DP: Version with external SS304 protective grille for greater glass safety.
TB-DG: Reinforced double-glazed version.
