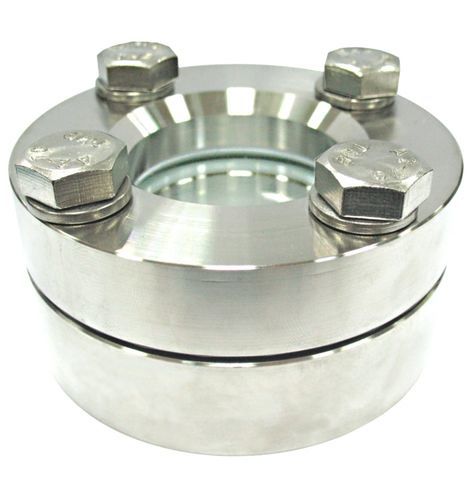

Monitoring sight glass AI.SO

stainless steeltempered glass facing

The AI.SO Series is an essential component for direct visual inspection inside tanks, reactors, and pipelines. Thanks to its circular flanged design and robust construction, it allows for safe monitoring of fluid status, levels, and process reactions in industrial environments.

Main Features
Clear Visibility: Equipped with high-strength, transparent tempered glass for a clear and safe view of contents.
High Temperature Resistance: Designed to operate in harsh thermal conditions, withstanding temperatures up to 280°C.
Stainless Steel Construction: The body and wetted parts are made of SS304 or SS316 (other materials upon request) to ensure maximum corrosion resistance.
Modular Design: Composed of a base body, sealing gaskets, glass, and locking cover with stainless steel hardware.

Technical Specifications
Available Sizes: From 1" to 10".
Materials: Body in SS304 / SS316; Tempered glass; SS304 hardware.
Operating Pressure:
Standard: Up to 5 bar (at 25°C).
High Pressure (optional): Up to 25 bar for specific sizes (4", 5") with 30 mm toughened glass.
Visible Diameter (V1): From 50 mm (1" model) to 300 mm (10" model).

Typical Applications
Inspection of tanks and chemical reactors.
Monitoring of mixing processes.
Visual inspection of level and turbidity in fluid treatment plants.
