Monitoring sight glass AI.FWstainless steeltempered glass facingflange
Add to favorites
Compare this product
Characteristics
- Specifications
- monitoring, stainless steel, tempered glass facing, flange, threaded
- DN
Min.: 10 mm
(0.4 in)Max.: 200 mm
(7.9 in)- Operating temperature
Min.: 70 °C
(158 °F)Max.: 200 °C
(392 °F)- Operating pressure
Min.: 9 bar
(131 psi)Max.: 39 bar
(566 psi)
Description

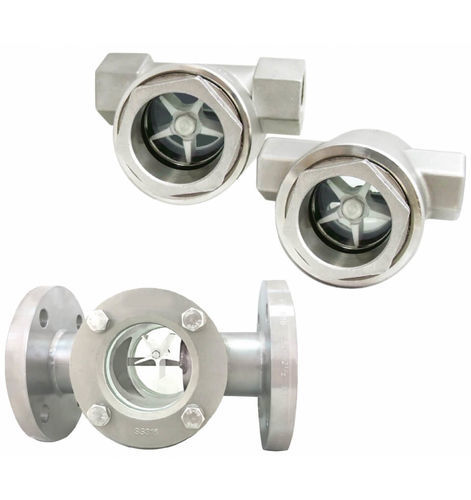

The flow sight glass was designed with or without spring paddle for easy observation of flowing fluid from any direction.
Service: Compatible gas and liquid, water treatment system, industrial flow system and double windows indication.
Material: Body - SS316, SS04, SS316L, SS304L and Duplex S.S-UNS J92205 on request only for without paddle type.
Paddle - SS316, Spring - SS316, Gauge - Tempered Glass, Gasket - Teflon, Gore-Tex, Graphite, Sigma 533
