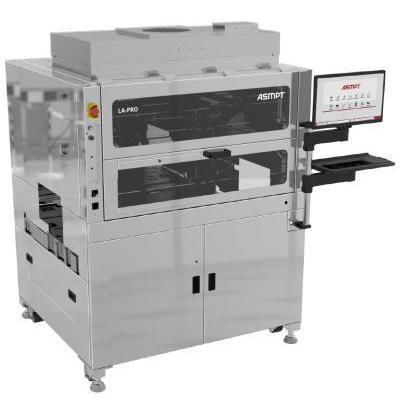

Automatic assembly machine LA-PRO

for camera modulesopticalpick-and-place

Overview
The demand for higher-resolution camera sensors in portable electronics is increasing. To address precision and throughput requirements in lens holder assembly, ASMPT introduces LA-PRO, an automatic lens holder bonding system engineered for high-volume production environments.

Product Summary
LA-PRO integrates a 4-head pick-and-place arrangement with a quad-dispenser and a high-resolution vision system to deliver up to 4K UPH. The system combines a state-of-the-art bond head, a moving-platform work holder and an all-round PR placement system to ensure accurate glue application and component placement. Fast package conversion and support for multiple substrate sizes provide production flexibility.

Features

• 4-head pick-and-place configuration paired with quad-dispenser to maximize throughput (4K UPH)
• All-round PR placement system for precise alignment and placement
• ASMPT dispensing system with inline glue inspection and automatic rework capability
• In-line integration with AIoT for monitoring, data collection and factory automation

Technical specifications

• 4-head pick-and-place system
• Quad-dispenser for simultaneous application
• Production throughput: 4K UPH (units per hour)
• State-of-the-art bond head system
• Moving platform work holder for secure handling
• High-resolution vision system for precise bonding
• Glue inspection and automatic rework capability
• All-round PR system for placement accuracy
• Supports various substrate sizes
• Quick package conversion capability
• In-line integration capability with AIoT for factory automation
